The rise of 3D printing and incredibly powerful — yet dirt-cheap — microcontrollers has given makers the ability to build amazing things right at home. It no longer takes multi-million dollar equipment only available to industry — we can bring our dreams to life for a few hundred dollars. But as technology marches on, limitations are popping back up. Everything is getting smaller, making it almost impossible to work with at home. It takes wizard-level skills to hand-solder components with an 0201 footprint as it is. What do we do when components get even smaller in the future?

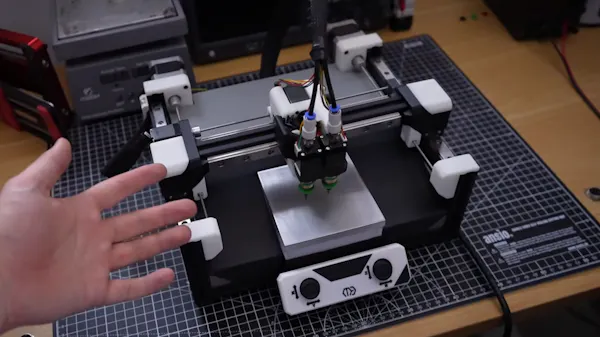

We’ll need new equipment, of course. Machinery already exists that can automatically align tiny components on a circuit board. But today, it is far too expensive for home use. YouTuber MagmaBow is trying to change that. He built a pick-and-place machine that does the job of million-dollar manufacturing equipment. However, MagmaBow’s creation doesn’t cost anywhere near a million dollars. It cost him $200 to build, making it highly accessible for home use.
The machine successfully placed this 0201 resistor (📷: MagmaBow)
The machine takes a different approach than the industrial systems found in electronics factories. Rather than relying on computer vision, automated tape feeders, CAD files, and complex calibration routines, MagmaBow designed a hybrid system that keeps a human operator in the loop. Because of this, the machine delivers much of the precision of a professional pick-and-place system without the complexity or cost.
The operator controls a four-axis gantry using a pair of joysticks. One joystick handles movement in the X and Y directions, while the other controls Z-height and nozzle rotation. Vacuum nozzles mounted on the toolhead pick up and place components, and pressing down on the joysticks toggles the vacuum pumps on and off.
Instead of using belts or conventional lead screws, MagmaBow selected inexpensive M3 threaded rods. With a pitch of just 0.5 mm per revolution and standard 200-step stepper motors, the theoretical positioning resolution works out to only a few microns per step. To eliminate backlash, the design uses pairs of compressed nuts that constantly preload the threads against each other.
The frame is built from 2020 aluminum extrusions fitted with linear guide rails. Motion is driven by stepper motors controlled through a repurposed Ultimaker 3D printer motherboard based on the ATmega2560. MagmaBow originally planned a fully analog control system built around comparators and 555 timers, but eventually switched to a software-driven solution after the circuitry became increasingly complicated.
Structural components were 3D printed in ASA, while the more intricate mechanisms, including a set of herringbone gears used in the dual-nozzle selector, were produced on a resin printer. Those gears were printed with zero clearance and then lapped together using an abrasive compound to create an exceptionally smooth fit.
In testing, the machine successfully picked, rotated, and placed everything from integrated circuits to tiny 0201 components. Even better, MagmaBow has released the design files and schematics as open source, giving makers a chance to build one of their own.
